5.5  Selection of the functional group

This mask field makes it possible to select the parts functional group after having defined the model, catalogue and any particular vehicle specifications.

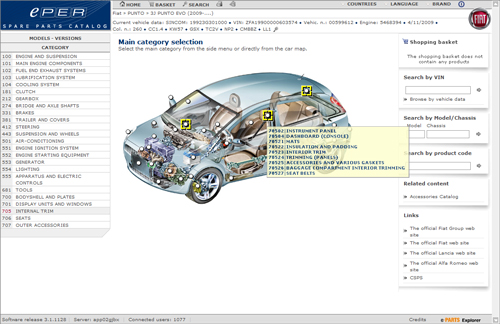

Fig. 17: Selection of the functional group



To continue:



»      Select the group from the left side menu



or



»      Select the group by clicking with the mouse above the ball identifying the position of the group on the icon of the vehicle



Moving the mouse cursor over the element identifying the group, either on the side menu or on the icon, automatically displays a popup window showing the subgroups, with a description, which are contained in the group.



Once the group is selected, through one of the two methods described above, the mask field  functional subgroups is displayed.
